Setting up your Stellar Kit: A step-by-step guide

Congratulations on your new Stellar Kit purchase!

While this guide is here to help, your Stellar Kit and the Nomono Studio App have been designed to guide you seamlessly through the entire setup. This guide however, is a handy reference for those who appreciate a bird's eye view of the entire process.

Step 1:

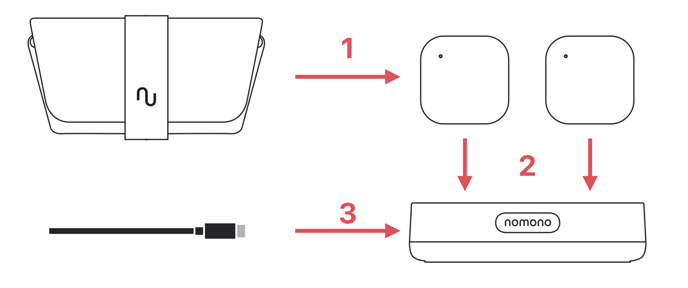

Activate and power on your Stellar Kit

1. Remove both Stellar Mics from the Travel Sleeve
2. Place both Stellar Mics in the Charging Dock
3. Connect the Charging Dock to a USB charger (charger and cable not included)

Step 2:

Download the Studio app.

• Apple users → Find the Studio App in the App Store here.

You may also search for the app yourself. Just enter the App Store on your iOS device and search for Nomono Studio.

Step 3:

Setting up your Nomono Studio Cloud account.

• Open up the Studio App on your mobile.

New Nomono Studio Cloud users can either:

• Sign up using the Studio app (as shown below), or:
• Sign up using your email address or Apple/Google account over at cloud.nomono.co.

Existing Nomono Studio Cloud users:

• If you previously have signed up for a Cloud account, or if you already own one or more Nomono products, Log in using the same method as your initial registration.

Step 4:

Account verification.

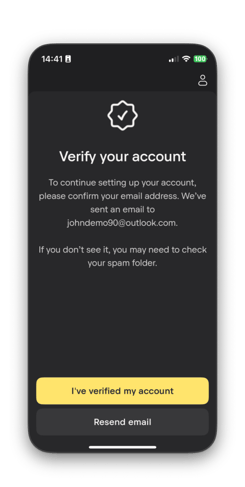

• After signing up, you should see the following message, asking you to confirm your email address:

• Check your email inbox for a message from support@nomono.co.
• Press Get started.

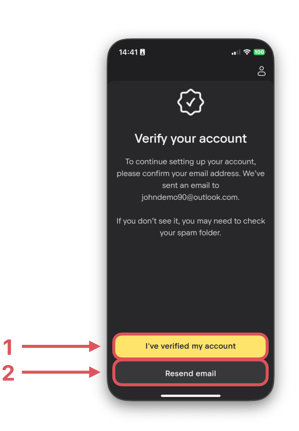

Go back to the Studio App on your mobile phone.

1. If you've verified your email → tap I've verified my account.
2. If you haven't received any verification email from us, tap Resend email.

Step 5:

Name and workspace

• On the next page you may enter your name and press Continue.

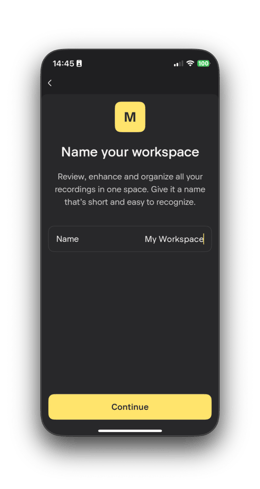

• This is followed by a new page where you are asked to enter a name for your Workspace. Choose a name and press Continue.

Step 6:

Your Cloud account has now been set up and a welcoming introduction appears in the app. Press Continue to flick through the slides or press Skip to skip the introduction.

Step 7:

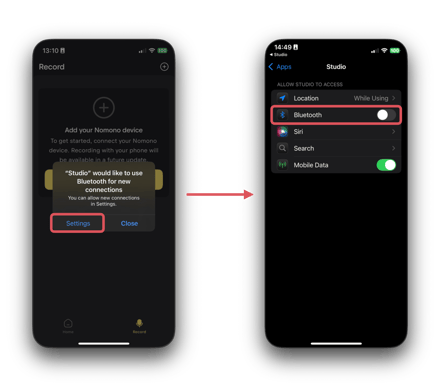

However, if Bluetooth is switched off on your device, or permissions have not been set to allow the Studio App to access your devices Bluetooth, a message informing you of this will appear. Head over to your devices settings and grant the Studio App access to Bluetooth or ensure that Bluetooth is enabled to continue the setup process.

Android: For Android users, a bluetooth-enable pop-up message will appear.

Step 8:

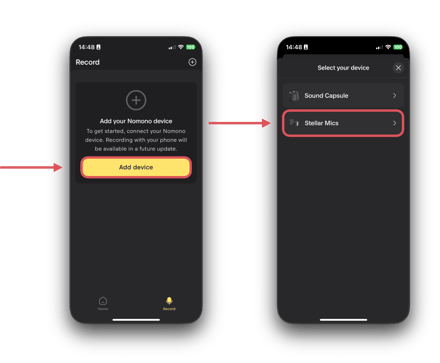

Press the Add device button and choose Stellar Kit

Step 9:

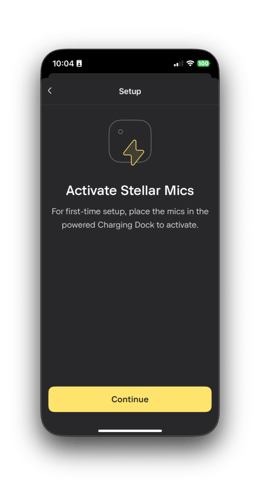

Activate Stellar Mics

• Ensure that the Stellar Mics are powered on as instructed in Step 1 above, and press Continue

Step 10:

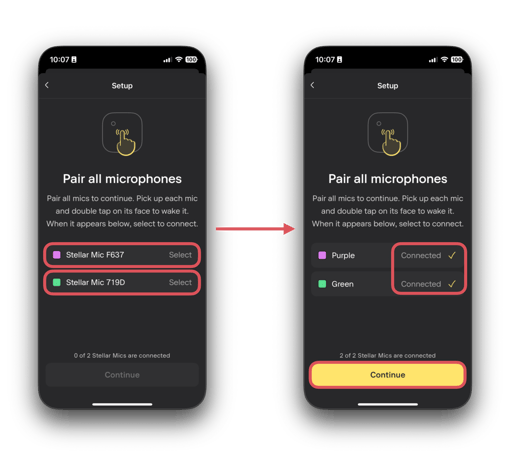

Select Stellar Mics and pair

• Select your new Stellar Mics from the list of microphones now shown on screen. There may be one or more devices shown depending on how many Stellar Mics are nearby.
• Once selected the Stellar Mics should have a yellow tick to the right of their color description, indicating that a connection has been made.
• When both of the Stellar Mics have been connected, press Continue to proceed.

Step 11:

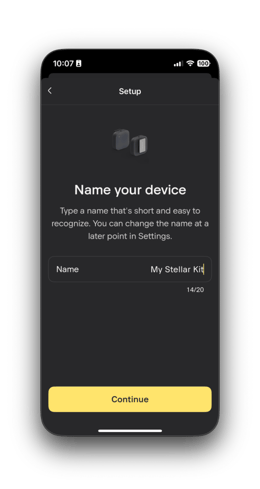

Name your device

• Enter a name for your Stellar Kit and press Continue.

Step 12:

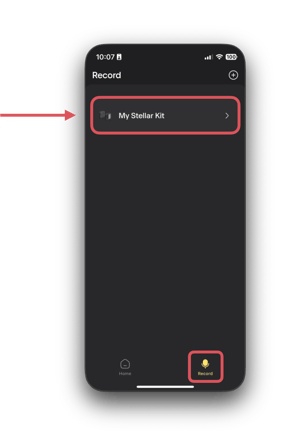

Locate and enter your Stellar Kit

• You are now brought to the Record page in the Nomono Studio app. This is where all your Nomono products and kits are located.
• Select your newly created Stellar Kit from the list

You're all set and the setup is now complete! Feel free to start recording with your new Stellar Kit. Welcome aboard and happy recording!

Your first recording

Once the initial setup is completed you may enter the Stellar Kit as instructed below. In this section we will teach you how to use your Stellar Kit to record, and how the Studio App and Stellar Mics behave during a recording.

To get started, please locate your Stellar Kit from the list of devices

• Tap the kit to proceed

Ensure that your Stellar Mics are powered on, not in sleep mode and in range of your iOS device. The way to check this directly from within the app, is to see the connection state of the Stellar Mics.

If the Studio App looses connection with the Stellar Mics at any point, they will be separated from the device row in the record screen view. A dark spacing between the Stellar Mics and the phone will indicate this, as seen in the left screenshot below.

The screenshot on the right is indicative of a kit where there is a connection between the Studio App and both Stellar Mics. All the parts are grouped together and the light grey fields are all touching.

Here is an explanation of the record screen:

1. Each part of the kit has a signal strength and battery status indicator visible, as long as there is a connection between the Stellar Mics and the Studio App (phone).
2. The destination workspace set in Nomono Studio Cloud is always visible above the record button. Keep note of this to ensure that your files are uploaded to the correct destination.

When both Stellar Mics are awake and connected, you are ready to make your first recording.

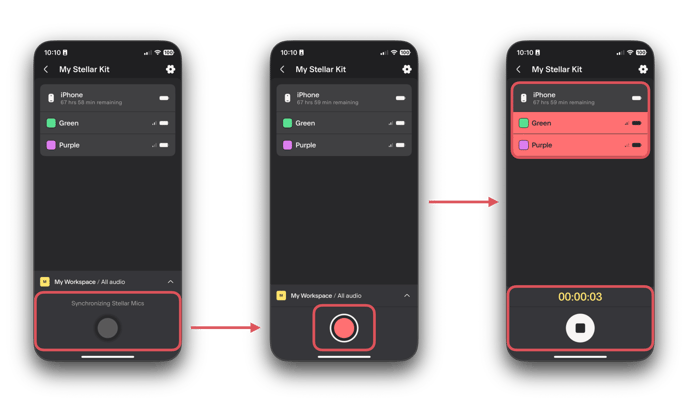

First, wait for the Stellar Mics to synchronize, then press the record button. Afterwards, observe that both Stellar Mics are armed and recording. There is a recording duration counter for your convenience, located directly above the record/stop button.

To stop the recording simply press the Stop button.

Once you press the Stop button the recording will stop and the Stellar Mics will no longer be armed for recording. The Studio App will gather any remaining data from the Stellar Mics internal memory and quickly start the upload to Nomono Studio Cloud.

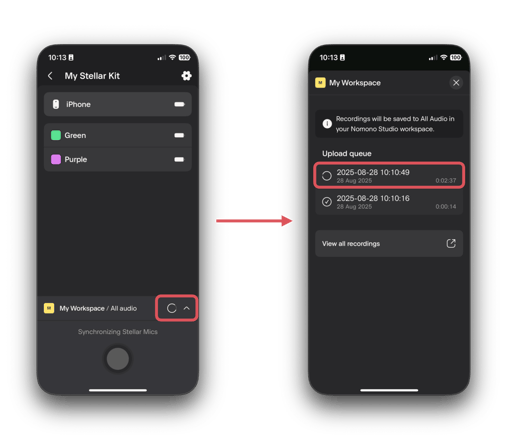

The upload status can be observed by the spinning progress wheel located above the record button, and from within the Upload Queue view you can see past uploads and check the upload status. When your recording receives a check mark on the left hand side, the upload is complete.

Press View all recordings and the Studio App will direct you to Nomono Studio Cloud where you can listen, enhance and download your recordings.
